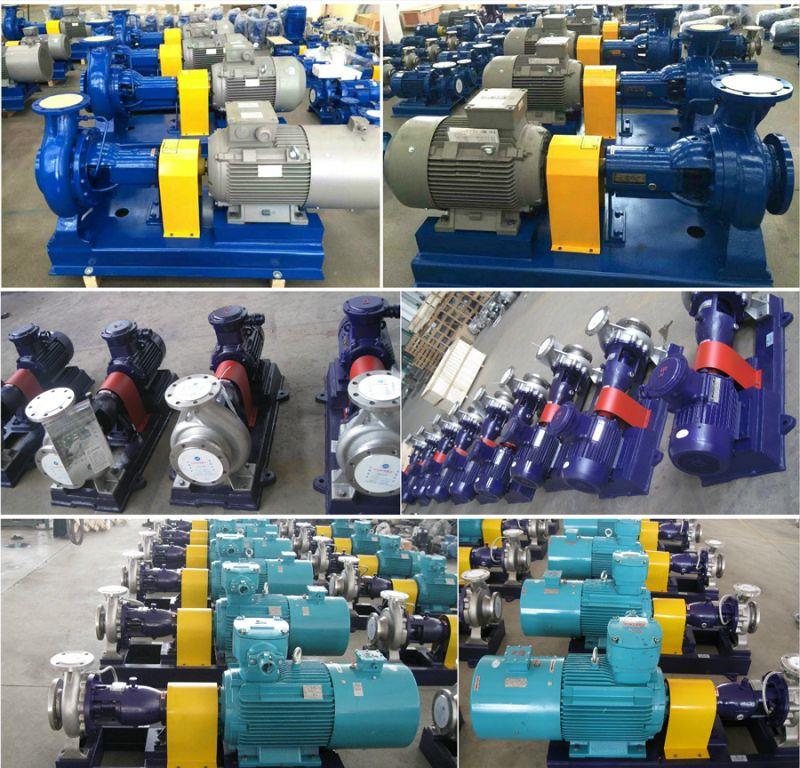

Horizontal Single-Stage Stainless Steel Chemical Centrifugal Pump (Acid-Resistant)
ICP-type chemical process pump is widely used to convey low-temperature, normal-temperature, or high-temperature corrosive media, depending on the user's medium type. The pump's flow passage components are made of materials such as fluorine plastic, bismuth glass, various austenitic stainless steels, titanium, and nickel, and can handle a certain amount of solid particles. Our chemical process centrifugal pump is mainly used in industrial sectors, including chemical engineering, petrochemicals, oil refining, metallurgy, light industry, and pharmaceuticals.
Performance Range
|
Flow rate: 2~480m3/h |
Head: 3~150m |
|
Design pressure: 2.5Mpa |
Temperature: -80~300℃ |
Adopted Standards
The rated performance point and installation dimensions comply with ISO 2858 and ISO 3661. Technical specifications conform to GB/T5656-94, which is equivalent to ISO 5199.

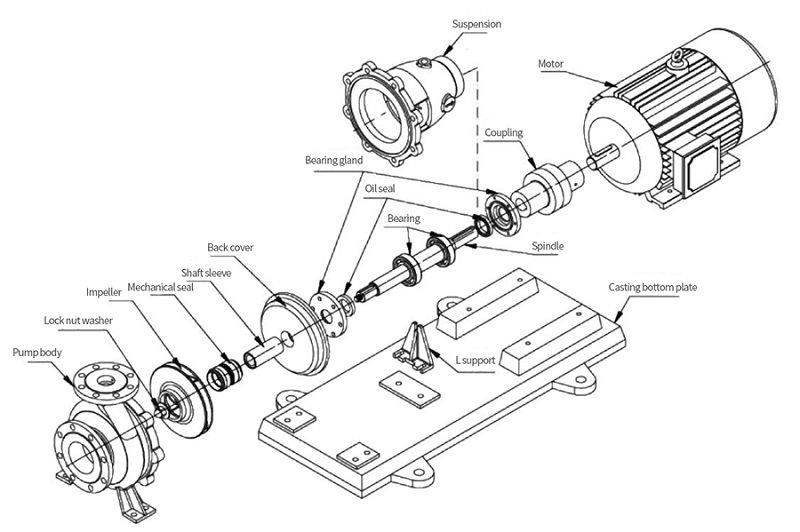

Design Features
Designed to improve the service life of mechanical seals and bearings, which are common failure points in chemical process centrifugal pumps.
The shaft is thickened to increase rigidity.
The bearing is enlarged and adopts a double-row radial thrust ball bearing. With minimal axial clearance of the rollers, the bearing life exceeds 25,000 hours, thereby extending the mechanical seal life.
The impeller is threaded onto the shaft, ensuring reliable sealing, easy assembly and disassembly, and better anti-cavitation performance than the IH pump.
The bearing housing has a spacious internal cavity, allowing for reliable mechanical sealing and long service life.
Water-cooled or air-cooled bearing housings, as well as water-cooled shaft seals with center support, can be provided.
Cartridge mechanical seals can be used in compliance with the U.S. API 610 standard.
Various shaft sealing types are available: single-face, double-face, tandem, internal, and external mechanical seals; auxiliary impeller and packing seals are also optional, available according to API 610 standards.
Can be equipped with a pressure sensor or motor protection switch to prevent overload damage to the motor and seal damage from liquid.
It can be equipped with a motor speed control device to adjust flow in real time. It can be automatically controlled by a liquid level meter or interlocked.

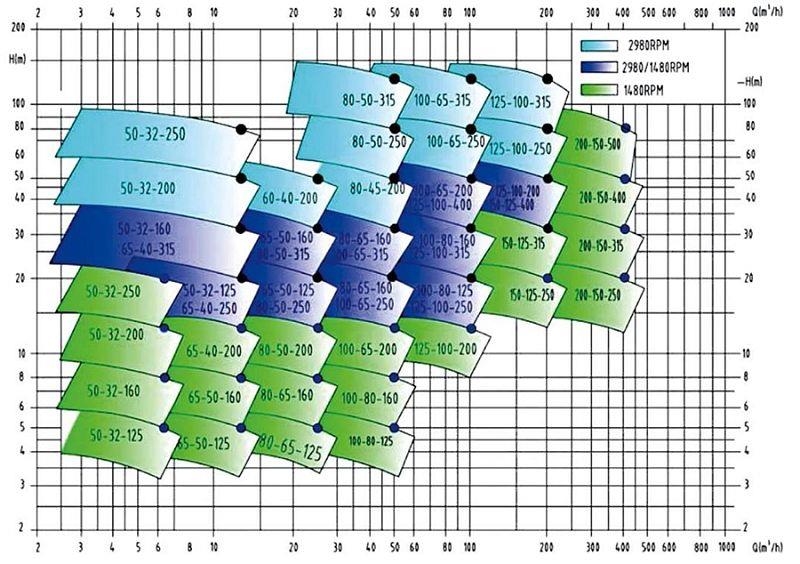

Spectral Spectrum of ICP Chemical Process Pump
FAQ
Q1: Why choose XJY chemical process pump?
+
-
A: Our factory has more than 30 years of production experience in the pump industry, with high-quality products and competitive prices. We have more than 20 engineers to provide you with selection services and technical support.
Q2: Can I use my logo or design on the pumps?
+
-
A: We provide OEM/ODM services, and your logo and design can be applied to the pumps.
Q3: What information do I need to offer for a quotation?
+
-
A:
Medium: _
PH: _
Specific Gravity: _
Temperature (℃) : _
Flow (m3/h ): _
Head (m): _
Voltage (V): _
Frequency (Hz): _
Power (KW):_
Q4: What is your warranty and after-sales service policy?
+
-
A: We will build customer profiles for customers, and once the product is sold, we will provide lifelong video coaching for technicians. All products are guaranteed for 12 months, and certain vulnerable products are guaranteed for 6 months. Take a photo or video of the problem and send it to us, and we will provide you with a satisfactory solution within 48 hours of your confirmation.
Q5: What are your terms of payment?
+
-
A: Sample or small order 100% t/T, large order 30% deposit, 70% before delivery. Before you pay off the balance, we will show you a picture of the product.
