Products Description

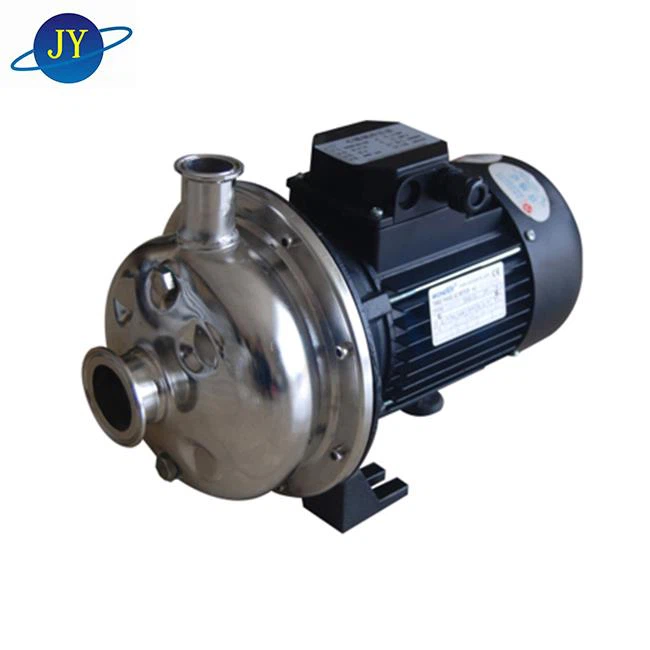

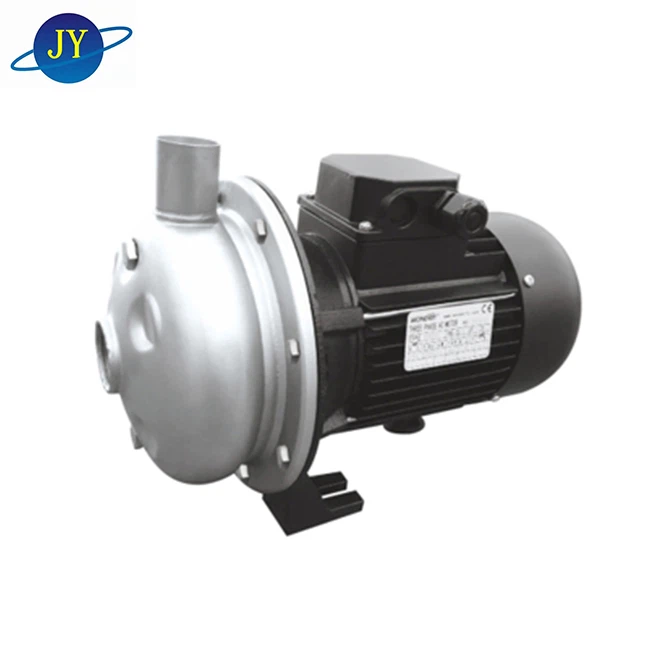

ICB series clean water pump is a single-stage single-suction centrifugal pump and features axial suction and radial discharge; beautiful appearance, light and handy structure, high efficiency and energy saving, durability, corrosion-proof, low noise, etc. Components passing the flow use AISI 304 or AISI 316 stainless steel.
All the parts contact with liquid made of 304 stainless steel. Mechanical seals are a standard supply.
* Material: Stainless steel
* Installation type: Horizontal
* Flow rate: 1.2~100m3/h
* Head: 4~50m
* Motor power: 0.37~15kw
* Speed: 1450rpm, 2900rpm
* Caliber: DN12~DN100
* Design pressure: 1.0MPa
* Temperature: -40~250℃
* Voltage: 380V 50Hz, can be as local demand
Features & Benefits
High Efficiency And Energy Saving: Due to the use of the most advanced hydraulic model design, it is more scientific and reasonable, and the flow path is smoother. Therefore, the efficiency is 8% higher compared to other similar pumps, and the energy consumption is reduced by more than 20%.
High Quality And Low Price: Due to the pump supplies are used relatively less, it saves about 75% compared to other similar pumps, the cost is equivalent to that of a cast iron pump, and the quality is better than a stainless steel pump.
Durable: Due to the use of a hard machine seal and the bearings are all SKF brand, the lifespan of the pump doubled compared to other similar pumps.
Lightweight Structure: The pump is only 1/8 the mass of a cast iron pump, saving more than 1/2 space, especially suitable for host matching.
High versatility: ICB (D, J) type bottom plate stamping pump can use WB2 type external type machine seal, ICB (D) pump installation size is exactly the same as IH type pump, and can be interchanged with IH type pump.
Smooth Surface: Due to the special surface treatment, the inner and outer surfaces of the pump are as clean as a mirror.
Low Noise: SKF bearings are used, and the flow path is smooth, so the running noise of the pump is very low.
Major Applications
For the domestic water supply
In water treatment
In the water circulation system
Pressurisation and pumping of clean water
In gardens for drip irrigation, water sprinklers, water fountains, etc.
