Products Description

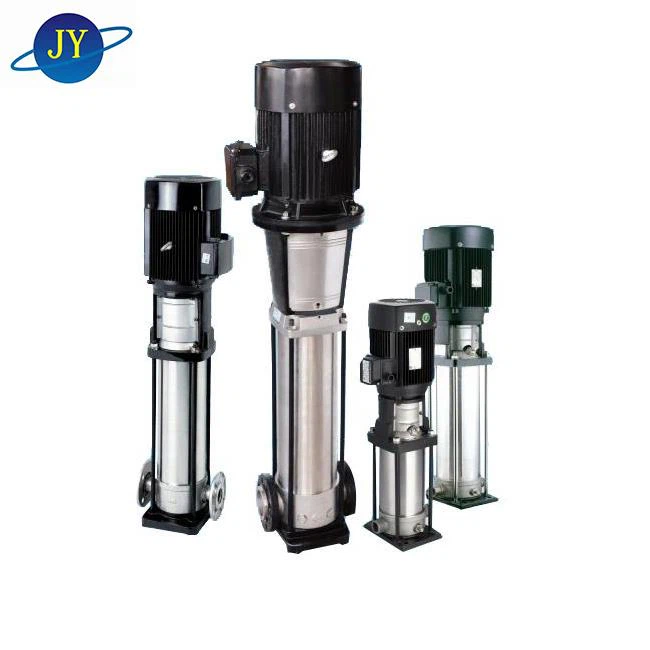

XJY's DLF series immersion multistage pump is designed for industrial use to carry fluids such as water, coolant, light oil, and other clean, non-aggressive fluids. The motor shaft is directly connected to the pump shaft through a coupling on the pump head. Stainless steel construction ensures corrosion-free operation. The pump can be equipped with an intelligent protector as required to prevent dry rotation, phase loss, and phase issues. Effective protection against overloads.
Immersion multistage pump is a high-efficiency and durable vertical multistage submersible pump suitable for chemical, pharmaceutical, food and water treatment industries.
Products Description
| Flow Rate | 1.0~110m3/h |
| Head | 6~305m |
| Motor Power | 0.37~45kw |
| Speed | 2900rpm |
| Caliber | DN20~DN100 |
| Design Pressure | 1.6Mpa/4.0Mpa |
| Temperature | ≤120℃ |
| Material | Stainless steel |
| Installation Type | Vertical |
| Voltage | 380V 50Hz, the voltage can be as local demand |
Customizable Range
Motor Voltage: Customizable according to national standards (e.g., 220V/440V/60Hz)
Material Options: Available in various grades of 304/316 stainless steel
Interfaces: Available in flange, threaded, and quick-release connectors
Control System: Configurable with variable frequency control and intelligent pressure control systems
Major Applications
Chemical Industry: Suitable for transporting acid and alkali solutions and various chemical media.
Pharmaceutical Industry: Suitable for transporting high-purity water and liquid medicines, ensuring hygienic safety.
Food and Beverage Industry: Suitable for transporting food-grade liquids, meeting hygienic standards.
Water Treatment and Industrial Circulating Water: Suitable for high-lift pumping stations and circulating cooling water systems.
Why Choose XJY-PUMP
Scale: 30 mu (approximately 16 acres), with 13,000 square meters of factory space, annual production capacity exceeds 10,000 pumps of various types.
Equipment: Equipped with CNC machining centers, lathes, and a testing center, we are capable of full-process production and rigorous quality inspection.
R&D: Collaborating with Jiangsu University and Anhui University of Science and Technology, we hold over 50 patents and have established an industry-university-research base.
Certifications: ISO9000, ISO45001, ISO14001, and EU CE certifications.
Qualifications: National High-Tech Enterprise, Jiangsu Private Technology Enterprise, and Municipal Technology Center.
