If your project involves moving massive volumes of water but doesn't require it to be pushed very high, you've likely heard the term "axial flow pump." But what exactly is it, and how is it different from the more common centrifugal pump?
Understanding this distinction is crucial for selecting the right equipment, optimizing energy costs, and ensuring your system runs reliably. This guide breaks down everything you need to know about axial flow pumps, in simple terms.

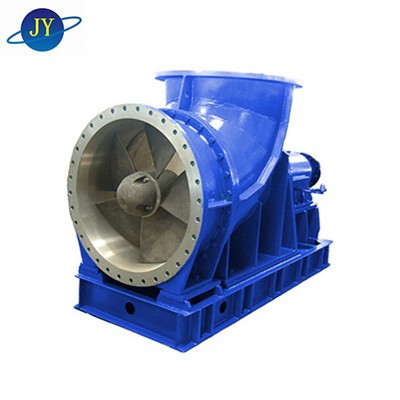

What is an Axial Flow Pump?
An axial flow pump is a type of dynamic pump designed specifically for one primary task: moving very large volumes of fluid with a relatively small increase in pressure (or head).
Think of it like a boat's propeller or an aircraft's fan. The fluid enters the pump axially (in a straight line along the shaft) and is pushed out in the same axial direction by the rotating blades of the impeller. Its core design principle is all about high-flow, low-head performance.
Key Characteristics:
* Flow Direction: Fluid flows parallel to the pump shaft.
* Performance Profile: Excels at delivering extremely high flow rates (often hundreds of thousands of gallons per hour) but at low heads, typically under 20 meters (65 feet).
* Impeller Design: Features a propeller-like impeller with 2-7 blades, housed within a cylindrical casing.
How Does an Axial Flow Pump Work? (The Simple Version)
Imagine a fan blowing air in a straight line-that's the basic concept.
1. Inlet: Water enters the pump casing from the bottom or side, flowing straight toward the impeller.
2. Lift & Push: As the propeller-like impeller spins, its angled blades act on the water, imparting both lift and a forward thrust.
3. Outlet: The water is discharged in the same axial direction it entered, now with increased velocity and a small amount of pressure.
4. Guide Vanes: Stationary guide vanes (stators) located above the impeller help to straighten the flow and convert some of the rotational energy into additional pressure.
This streamlined, direct-path design is what allows axial pumps to achieve such remarkable flow rates with minimal energy loss.
Axial Flow Pump vs. Centrifugal Pump: What's the Difference?
This is the most common point of confusion. Both are dynamic pumps, but their internal mechanics and performance curves are worlds apart.
| Feature | Axial Flow Pump | Centrifugal Pump |
| Flow Path | Straight, parallel to the shaft | Radial, flung outward from the center |
| Primary Strength | Very High Flow, Very Low Head | Moderate Flow, Moderate to High Head |
| Impeller Shape | Propeller-like | Curved blades in a volute casing |
| Efficiency Curve | Peak efficiency in a narrow, high-flow band | Broader efficiency range across various flows/heads |
| Best For | Moving a river, not lifting it | Lifting water to a tank or through long pipes |
Simple Rule of Thumb: If your main challenge is moving a huge amount of water a short distance or height, think axial flow. If your challenge is pushing water up many stories or through miles of pipe, think centrifugal.
When Should You Use an Axial Flow Pump? (Top Applications)
Axial flow pumps shine in scenarios where their unique high-flow capability is the primary requirement:
1. Flood Control & Drainage: Rapidly evacuating floodwaters from urban areas, farmland, or construction sites.
2. Large-Scale Irrigation: Pumping water from rivers, lakes, or reservoirs to irrigate vast agricultural fields.
3. Cooling Water Circulation: Supplying the massive volumes of cooling water needed by power plants, refineries, and large industrial facilities.
4. Wastewater Treatment: Handling the high-volume influent and effluent flows in municipal treatment plants.
5. Land Reclamation & Dewatering: Draining water from canals, docks, or newly reclaimed land.
Is an Axial Flow Pump Right for Your Project?
Now that you understand the basics, you can start to assess if this technology fits your needs. Ask yourself:
* Do I need to move hundreds of thousands or millions of gallons per day?
* Is my required discharge head less than 20 meters (65 feet)?
* Am I primarily pumping clean or slightly dirty water?
If you answered "yes" to these questions, an axial flow pump is likely a strong candidate.
Not sure? Get a free expert consultation to confirm your pump selection.
XJY-PUMP is a leading manufacturer and supplier of high-performance axial flow pumps for demanding applications in municipal, agricultural, and industrial sectors. We combine decades of hydraulic engineering expertise with robust construction to deliver solutions that maximize flow, minimize energy costs, and ensure decades of reliable service.
